Outdoor BESS Enclosure Manufacturing: An 800 kg Load and Rail Accuracy Case Study

When an energy storage system manufacturer develops an outdoor BESS product, the enclosure has to work as part of the product structure.

For commercial and industrial energy storage systems, the cabinet may need to support substantial weight while providing accurate mounting positions for battery modules and other internal components.

This creates a different manufacturing challenge from producing a simple protective metal cabinet.

A recent project for a French energy storage system integrator demonstrates this clearly.

The customer was developing commercial and industrial battery energy storage systems and needed a custom outdoor cabinet with:

• 800 kg static load capacity

• IP65 protection

• Accurate internal rail positions

• Separate sealed compartments

• Sealed cable entries

• Repeatable production geometry

• Outdoor-grade powder coating

The critical issue was not simply producing a large galvanized steel cabinet.

The enclosure had to maintain its internal geometry accurately enough for the customer's battery modules to slide into position during assembly.

The Customer Already Had a BESS Product — The Problem Was the Enclosure

The customer was a system integrator supplying commercial and industrial battery energy storage systems.

They had previously sourced cabinets locally but experienced long lead times and inconsistent weld quality.

For an energy storage manufacturer, inconsistent enclosure production can create problems beyond appearance.

If the internal rails move out of position during welding, the battery modules may not fit correctly during assembly.

The customer therefore needed a manufacturing solution that could provide both:

Structural strength

and

repeatable internal geometry.

This became one of the main requirements of the project.

The Main Manufacturing Challenges

1. Supporting an 800 kg Static Load

The cabinet needed to carry a static load of approximately 800 kg.

This meant that the enclosure structure could not rely solely on individual sheet-metal panels.

A reinforced structural framework was required to provide the necessary support.

2. Maintaining Rail Position After Welding

The battery modules needed to slide into their designated compartments.

This made the position of the internal rails a critical dimensional feature.

Welding can introduce dimensional changes to a large sheet-metal structure.

If the rails are welded without controlling their position, the finished cabinet may not maintain the required internal geometry.

3. Maintaining Outdoor Protection

The cabinet required IP65 protection.

The enclosure therefore needed sealed compartments, controlled door interfaces, and protected cable entry points.

4. Repeating the Same Geometry Across Production

The customer was not looking for one prototype cabinet.

The final product needed to be manufactured repeatedly.

The manufacturing process therefore had to control the enclosure geometry from the first article through subsequent production batches.

How We Solved the Structural and Dimensional Challenges

We manufactured the enclosure using 2.5 mm galvanized sheet and built the main structure around a fully welded structural skeleton.

One of the most important decisions was to use a welding fixture to verify the rail positions.

Instead of relying only on operator positioning during welding, the fixture helped establish a consistent reference for the internal rails.

This allowed each cabinet to reproduce the required internal geometry.

For a battery cabinet, this matters because the enclosure is directly involved in the installation process.

The objective was not simply:

“Make every cabinet look the same.”

The objective was:

Make every cabinet function the same during module installation.

Designing the Cabinet Around the Battery Modules

The cabinet was divided into two sealed compartments with an internal partition.

Each compartment had its own door.

The internal arrangement was developed around the customer's battery installation requirements.

The rails had to maintain sufficient dimensional accuracy for the battery modules to slide into position without forcing or modifying the enclosure.

This is one of the areas where sheet-metal manufacturing becomes closely connected to the customer's final product assembly.

A small structural deviation in the cabinet can become an installation problem later in the production process.

Sealed Cable Entries

Outdoor energy storage equipment requires cable access while maintaining environmental protection.

For this project, the cabinet used sealed cable entries.

The enclosure also incorporated EPDM gaskets around the relevant interfaces.

The goal was to create controlled sealing points rather than leaving cable and panel interfaces to be modified after production.

This was particularly important because the customer specified IP65 protection for the finished cabinet.

Powder Coating for Outdoor Use

After fabrication and assembly, the cabinet received an outdoor-grade powder coating.

The surface treatment was selected as part of the enclosure's outdoor application requirements.

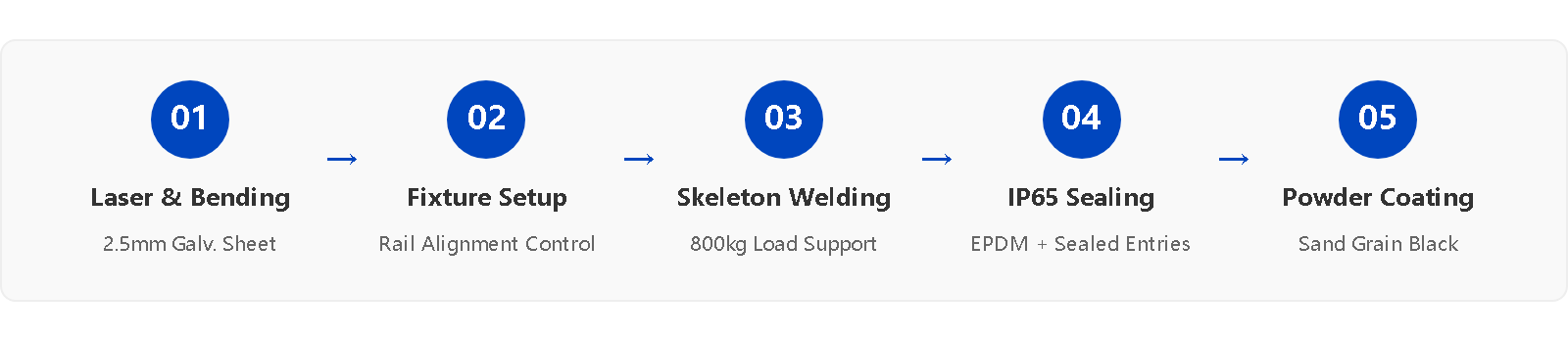

The manufacturing process included:

• Laser cutting

• CNC punching

• CNC bending

• Fixture welding

• Riveting

• Powder coating

• Assembly

The combination of galvanized sheet and outdoor-grade powder coating provided the specified surface treatment for the cabinet.

Production Specification

The main production specification for this project was:

The important point is that these specifications were connected.

The 800 kg load requirement influenced the structural design.

The battery installation requirement influenced rail positioning.

The outdoor application influenced sealing and surface treatment.

The production requirement influenced the use of welding fixtures.

First Article Approval Took Two Sample Rounds

The first article was not approved immediately.

The customer approved the first article after two sample rounds.

For a custom enclosure, sample iterations can be useful when structural requirements and actual assembly requirements need to be verified together.

In this project, the important verification points included the cabinet structure and the dimensional consistency of the internal rail system.

Once the first article was approved, the project moved into repeat production.

From Prototype to Repeat BESS Production

The project subsequently developed into repeat orders of 80 cabinets per batch.

This is an important difference between producing a one-off metal cabinet and manufacturing an enclosure for an equipment manufacturer.

The customer needed a structure that could be reproduced consistently.

The manufacturing process therefore had to maintain:

• Structural geometry

• Rail positions

• Door and panel interfaces

• Sealing interfaces

• Cable entry positions

• Surface finish

across repeated production.

The result was a transition from initial sample development to recurring production.

What This BESS Project Shows Equipment Manufacturers

This project demonstrates an important point about custom BESS enclosure manufacturing:

The enclosure can directly affect the customer's assembly process.

A BESS cabinet is not necessarily just an external protective shell.

When internal rails, mounting positions, structural supports, sealed compartments, and cable interfaces are part of the enclosure, manufacturing accuracy becomes part of the overall equipment development process.

For an energy storage system manufacturer, this can make the difference between:

A cabinet that looks correct

and

A cabinet that installs correctly and can be reproduced consistently.

Why Welding Control Matters for Large BESS Cabinets

Large welded sheet-metal cabinets can contain multiple connected panels, structural members, doors, rails, and mounting interfaces.

When these components are welded together, controlling their relative position becomes important.

This is why this project used a dedicated welding fixture for rail positioning.

The fixture was not simply a production convenience.

It was part of the method used to make the internal geometry repeatable.

For equipment manufacturers ordering repeated BESS cabinets, this type of production control can be more valuable than simply having a large fabrication capacity.

Custom BESS Enclosure Manufacturing for Equipment Manufacturers

This project was manufactured for a system integrator rather than as a standard catalog cabinet.

The enclosure was produced around the customer's requirements for:

• Load capacity

• Battery module installation

• Internal rail positioning

• Environmental protection

• Cable entry

• Compartment configuration

• Outdoor finish

This is the type of project where ODM-oriented enclosure manufacturing can be useful.

The customer does not necessarily need a standard cabinet.

They need a metal enclosure that fits the structure and installation requirements of their own energy storage product.

Our Scope: The Metal Enclosure and Structural Parts

Our role in this project was the metal enclosure manufacturing and assembly.

We manufacture custom:

• BESS cabinets

• Battery storage enclosures

• Equipment cabinets

• Electrical enclosures

• Server rack enclosures

• EV charging enclosures

• LED display cabinets

• LCD housings

• Sheet metal structural parts

We focus on the enclosure and structural manufacturing side rather than supplying the complete energy storage system.

For BESS manufacturers and system integrators, this means the enclosure can be developed around the required equipment dimensions, installation interfaces, and production requirements.

Developing a Custom BESS Cabinet?

If your energy storage product requires a custom metal cabinet rather than a standard enclosure, send us your 3D CAD, 2D drawings, or initial product requirements.

For projects involving large welded cabinets, battery module rails, load requirements, sealing interfaces, or repeated production, we can review the enclosure structure and manufacturing requirements.

Send Your BESS Enclosure Requirements →

FAQ

What material was used for this BESS enclosure?

The cabinet was manufactured from 2.5 mm galvanized sheet.

How much load did the BESS cabinet need to support?

The enclosure was designed for an 800 kg static load.

What protection level was required?

The customer required IP65 protection.

How were the internal battery rails controlled?

A welding fixture was used to verify and maintain the rail positions during production.

Did the cabinet have separate compartments?

Yes. The cabinet was divided into two sealed compartments, each with its own door.

How were cable entries sealed?

The cabinet used sealed cable entries, together with EPDM gaskets at relevant interfaces.

How many units were produced?

After first-article approval, the customer placed repeat orders of 80 cabinets per batch.
