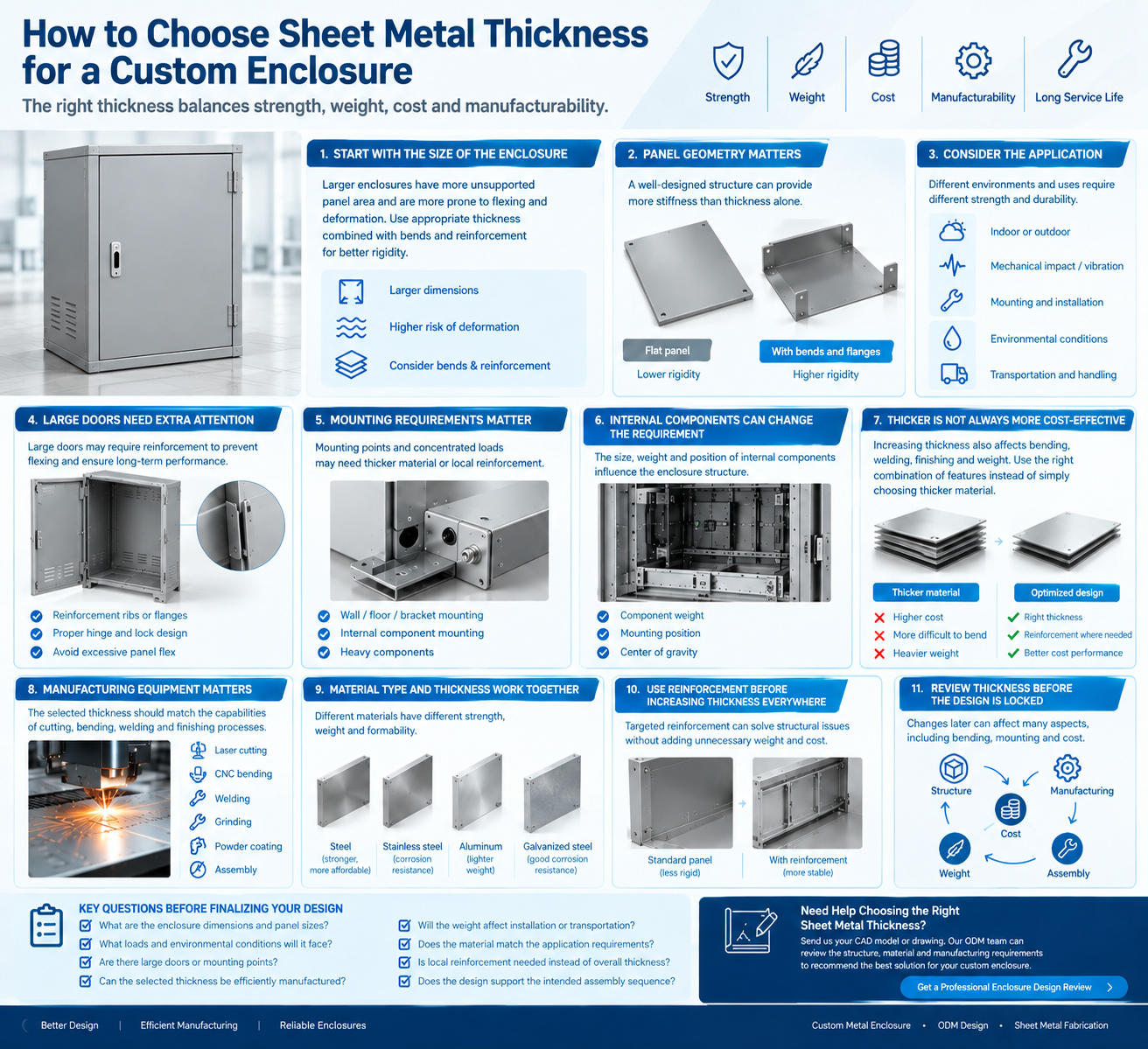

Sheet metal thickness is one of the earliest decisions in custom enclosure development.
It affects much more than the weight of the finished product.
The selected thickness can influence:
Structural rigidity
Panel deformation
Door performance
Mounting strength
Overall enclosure weight
Material cost
Bending requirements
Welding
Surface finishing
Transportation
Production efficiency
A common mistake is to choose a thicker material simply because it appears stronger.
That approach can work for some products, but it may also create unnecessary cost and manufacturing complexity.
A better approach is to select the thickness according to the actual mechanical and manufacturing requirements of the enclosure.
Enclosure dimensions are one of the first factors to consider.
A small metal housing may remain sufficiently rigid with a relatively thin sheet because the unsupported panel area is limited.
A large enclosure is different.
As panel dimensions increase, a flat sheet can become more susceptible to:
Flexing
Vibration
Local deformation
Oil-canning effects
Damage during handling
This does not automatically mean that a large enclosure needs extremely thick material.
Instead, the design can combine appropriate sheet thickness with structural features such as:
Flanges
Bends
Internal supports
Reinforcement members
Folded edges
The enclosure geometry itself contributes to rigidity.
Two panels made from the same sheet thickness can have very different levels of rigidity.
A completely flat panel has limited stiffness.
Adding bends or formed edges can significantly change how the structure behaves.
For example, a panel with:
Folded edges
Return flanges
Perimeter bends
Internal reinforcement
can provide greater structural stability than a simple flat sheet of the same thickness.
This is why thickness should not be considered independently from enclosure geometry.
During ODM enclosure development, engineers can evaluate the relationship between:
Material Thickness + Panel Size + Geometry + Reinforcement
rather than increasing thickness whenever rigidity is a concern.
The application determines what the enclosure needs to withstand.
A lightweight indoor control enclosure may have very different requirements from a large outdoor equipment housing.
Consider whether the enclosure will experience:
Frequent handling
Vibration
Mechanical impact
External loads
Door movement
Equipment installation
Outdoor exposure
Transportation vibration
The enclosure does not need the same thickness for every application.
The material specification should be connected to the real operating environment.
Doors are one of the areas where sheet thickness becomes especially important.
A large door can experience:
Its own weight
Hinge loads
Locking forces
Repeated opening and closing
Transportation impact
If the door is too flexible, the problem may not simply be solved by increasing the thickness.
Other design elements may be more appropriate, such as:
Folded door edges
Reinforcement bars
Internal brackets
Stiffening structures
The correct solution depends on the door size and construction.
For a large custom enclosure, the door should therefore be reviewed separately from the main enclosure body.
An enclosure often needs to support other components or be mounted to another structure.
For example, the housing may require:
Wall mounting
Floor mounting
Internal component mounting
Brackets
Hinges
Locks
Cable glands
External interfaces
The mounting points may experience concentrated loads.
A thin panel may not provide sufficient local rigidity for certain mounting conditions.
However, increasing the thickness of the entire enclosure may not be the most efficient solution.
Local reinforcement can sometimes provide the required strength while keeping the overall structure efficient.
The enclosure is not designed in isolation.
The size, weight, and mounting position of the customer's internal components can affect the enclosure structure.
For example, a heavy internal assembly mounted close to one panel may create greater local loading.
Engineers should therefore consider:
Component weight
Mounting position
Mounting points
Center of gravity
Internal support structure
Transportation conditions
This is one reason ODM enclosure development benefits from understanding the customer's internal layout.
The enclosure should support the actual product rather than being designed only from its external dimensions.
Increasing thickness generally means more material.
But the cost impact does not stop there.
A thicker sheet may also affect:
Laser cutting parameters
Bending force
Tool selection
Bend radius
Handling
Welding
Finishing
Product weight
If a design uses unnecessarily thick material across every panel, the additional cost may provide little practical benefit.
A more efficient solution may combine different structural approaches.
For example:
Main structural panels
→ Appropriate base thickness
Large access door
→ Reinforced structure
Internal mounting area
→ Local support
This can produce a more balanced enclosure.
The selected thickness also needs to be compatible with the manufacturing process.
Custom sheet metal enclosures may involve:
Laser cutting
CNC cutting
CNC bending
Welding
Grinding
Powder coating
Assembly
Each process has its own practical considerations.
For bending in particular, sheet thickness is related to:
Bend radius
Bend length
Required force
Tooling
Part geometry
A design that looks acceptable in CAD may still require manufacturing review before production.
This is why material thickness should be evaluated together with the complete fabrication process.
Thickness alone does not define the mechanical behavior of a sheet metal enclosure.
Material type also matters.
Common enclosure materials include:
Mild steel
Stainless steel
Aluminum
Galvanized steel
Different materials have different characteristics in terms of:
Weight
Strength
Formability
Corrosion resistance
Surface appearance
Manufacturing behavior
For example, aluminum can reduce overall product weight, while stainless steel may be selected when corrosion resistance or a particular appearance is important.
The final material and thickness combination should therefore match the application.
Large flat surfaces are often more sensitive to flexing.
If a product requires a large uninterrupted panel, engineers should consider whether the panel needs additional structural features.
Possible approaches include:
A perimeter flange can increase rigidity.
A reinforcement member can support a large panel.
The geometry itself can improve stiffness.
Separating a very large structure into coordinated panels may also improve manufacturability.
The best solution depends on the product architecture.
Enclosure weight matters in many applications.
A heavier enclosure can affect:
Installation
Handling
Packaging
Transportation
Wall mounting
Assembly
This is particularly important for products that are installed or serviced manually.
For example, if an enclosure will be wall-mounted, unnecessary weight can create additional requirements for the mounting structure.
The goal should therefore be sufficient rigidity without adding unnecessary mass.
The enclosure may be manufactured correctly but still be inconvenient to handle if it becomes unnecessarily heavy.
This can matter for:
Wall-mounted housings
Large industrial enclosures
Outdoor equipment cabinets
Service-access products
Equipment installed by field technicians
During design review, it is useful to consider the complete lifecycle:
Manufacturing
→ Packaging
→ Transportation
→ Installation
→ Maintenance
A thickness decision that looks reasonable from a manufacturing perspective may not be optimal for the final user.
A common shortcut is:
Large enclosure = thick sheet
Small enclosure = thin sheet
This is too simple.
Two enclosures with similar external dimensions may require different structures because of differences in:
Internal component weight
Mounting configuration
Door size
Reinforcement
Installation method
Operating environment
Required rigidity
The actual design should therefore be evaluated as a complete structure.
When only one section of an enclosure needs additional rigidity, increasing the thickness of every component may be inefficient.
A better approach may be to reinforce the specific area.
For example:
Problem: Large door flexes.
Possible solution: Add a formed reinforcement structure.
Problem: Internal mounting area needs additional support.
Possible solution: Add a mounting plate or structural bracket.
Problem: Large side panel vibrates.
Possible solution: Add a stiffening feature.
This approach can maintain a reasonable overall enclosure weight while addressing the actual structural problem.
When several sheet metal panels are connected together, the joint design needs to be compatible with the selected material thickness.
Consider:
Screw or bolt size
Nut installation
Rivet requirements
Threaded inserts
Flange dimensions
Joint accessibility
The sheet should provide enough structure around critical fastening areas.
If the panel is very thin, the design may require additional hardware or reinforcement.
Therefore, fastener selection and sheet thickness should be reviewed together.
There is no requirement for every sheet metal component in an enclosure to use exactly the same thickness.
Depending on the design, different parts may have different requirements.
For example:
Main body → structural requirement
Door → stiffness and hinge requirement
Rear cover → access and appearance
Internal mounting plate → component support
Bracket → concentrated load
Small cover → mainly protective function
Using the same thickness everywhere may simplify material purchasing, but it is not always the most optimized engineering solution.
For ODM development, the engineering team can evaluate whether standardizing thickness is beneficial or whether selected components should use different specifications.
Changing material thickness late in development can affect more than the material specification.
It may require changes to:
Bend dimensions
Bend radius
Flanges
Fasteners
Reinforcement
Mounting points
Door structure
Overall weight
This is why thickness should be reviewed while the enclosure structure is still being developed.
An early design review can identify potential problems before they reach prototype or mass production.
Before finalizing a custom metal enclosure, ask:
How large are the unsupported panels?
Where are the main loads?
Are reinforcement features required?
What components will be mounted inside?
Where is the center of gravity?
How will the enclosure be installed?
How large is the door?
What hinge and locking system will be used?
Does the door require reinforcement?
Can the selected thickness be efficiently cut?
Can the required bends be produced?
Is the geometry compatible with available tooling?
Is the material thicker than necessary?
Will the additional weight affect transportation?
Will the enclosure be easy to handle during installation?
These questions provide a better starting point than choosing thickness based on appearance alone.
For a custom enclosure project, the customer may already have an initial CAD model or thickness specification.
However, the initial design may have been developed primarily around product dimensions.
An ODM manufacturer can review the design from the manufacturing side and evaluate:
Product Requirements
↓
Internal Layout
↓
Panel Dimensions
↓
Material and Thickness
↓
Bending Structure
↓
Reinforcement
↓
Manufacturing
↓
Prototype and Validation
This approach helps identify whether the selected thickness is practical for the actual enclosure.
The goal is not simply to make the metal thicker.
The goal is to achieve the required structural performance with an efficient manufacturing structure.
There is no universal sheet metal thickness that is correct for every custom enclosure.
The appropriate choice depends on:
Enclosure dimensions
Panel geometry
Material
Internal component loads
Door size
Mounting requirements
Reinforcement
Manufacturing processes
Weight
Installation and transportation
Using thicker material can increase rigidity, but it can also increase cost and weight.
Using thinner material can reduce material usage, but it may require better structural design.
For this reason, sheet metal thickness should be treated as part of the overall enclosure engineering process rather than an isolated material decision.
For custom metal enclosure ODM projects, reviewing thickness together with structure, bending, reinforcement, mounting, and manufacturing requirements can help create an enclosure that is both technically appropriate and practical to produce at scale.
There is no single thickness that works for every enclosure. The appropriate thickness depends on enclosure size, material, panel geometry, loads, mounting requirements, and manufacturing conditions.
Not necessarily. Large panels can often gain rigidity through bends, flanges, and reinforcement instead of simply increasing material thickness.
Yes. Different panels and brackets may have different structural requirements, so using different thicknesses can sometimes improve overall design efficiency.
Thicker material generally provides greater section stiffness, but enclosure rigidity also depends heavily on geometry, bends, reinforcement, joints, and material properties.
Thickness can influence cutting, bending force, tooling, bend radius, welding, handling, and finishing requirements.
Yes. Reviewing thickness before the design is finalized can help identify structural, manufacturing, weight, and cost issues before prototype and production.
If you already have a CAD model, drawing, or preliminary enclosure concept, our ODM engineering team can review the structure, material, thickness, bending features, reinforcement, and manufacturing requirements.
Send your enclosure design for a manufacturing review and let us help develop a practical sheet metal structure for production.
