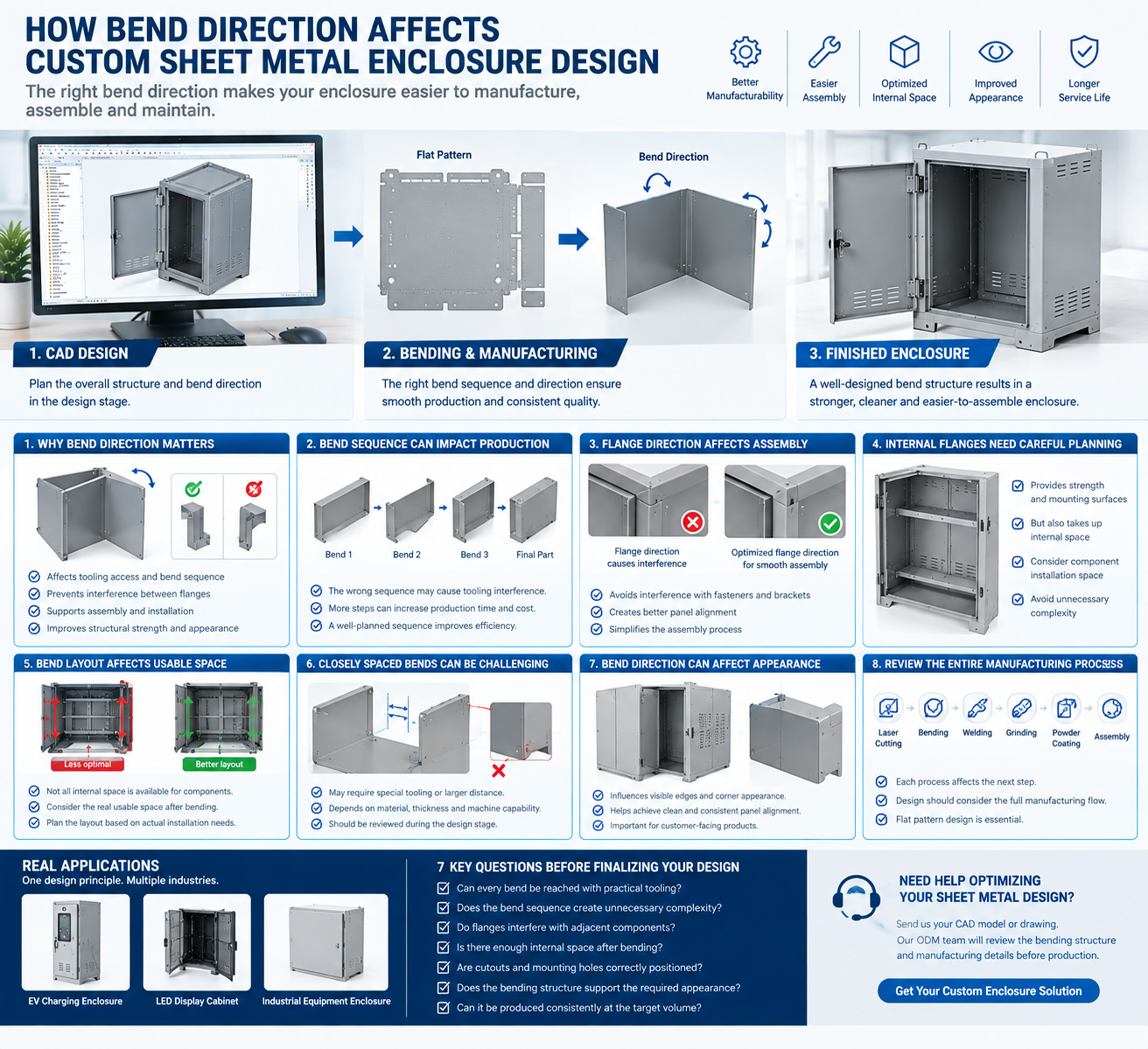

When engineers design a custom sheet metal enclosure, most attention goes to the overall dimensions.
How wide should the cabinet be?
How tall should it be?
Where should the openings go?
Where will the components be mounted?
These are important questions.
But another detail can have a surprisingly large impact on the final enclosure:
How are the panels going to be bent?
A sheet metal part may look simple in a CAD model.
However, once the design reaches manufacturing, the bending direction, bend sequence, flange position, and distance between bends can all affect whether the part can be produced efficiently.
For an ODM project, these considerations are particularly important because the enclosure can be reviewed and optimized before the design is locked for production.
A flat sheet can be cut into almost any outline.
But after cutting, the sheet needs to be formed into the required three-dimensional structure.
This is where bending becomes important.
A single enclosure panel may contain:
Several flanges
Mounting surfaces
Reinforcement features
Corner bends
Internal brackets
Door edges
If these features are not planned together, one bend can interfere with another.
The result may be:
Difficult tooling access
Complicated bending sequences
Unnecessary manufacturing steps
Assembly interference
Reduced production efficiency
The problem is therefore not always whether the part can be bent.
The more important question is:
Can it be bent efficiently and consistently using a practical production process?
A three-dimensional model shows the final shape.
It does not automatically show:
Which bend is made first
Which direction the sheet is rotated
How the operator positions the part
Whether the tooling can reach the feature
Whether another flange interferes with the tooling
This is why a design that looks completely reasonable in CAD can still require engineering review before manufacturing.
For simple parts, this may be straightforward.
For complex enclosure panels with multiple bends, it becomes much more important.
Consider a panel with several flanges.
The first bend may create a flange along one side.
The second bend creates another flange.
Eventually, the part becomes a three-dimensional structure.
But if the later bend requires the previously formed flange to pass through or around the tooling area, the bending sequence becomes more complicated.
The manufacturer may need to consider:
Bend 1
↓
Rotate the part
↓
Bend 2
↓
Reposition
↓
Bend 3
↓
Final forming
The more complicated the sequence becomes, the more important manufacturing planning becomes.
For an enclosure intended for repeat production, reducing unnecessary complexity can be valuable.
Bend direction does not only affect manufacturing.
It can also affect how the final enclosure is assembled.
Imagine two panels that need to connect at a corner.
If the flanges point in an inconvenient direction, they may interfere with:
Fasteners
Adjacent panels
Internal mounting plates
Door structures
Brackets
A small change in flange direction can sometimes create a much cleaner assembly.
This is why bending should be considered together with the entire enclosure structure.
Many industrial enclosures use internal flanges to increase stiffness or create mounting surfaces.
These can be useful for:
Supporting internal panels
Mounting components
Connecting enclosure sections
Improving structural rigidity
However, internal flanges also occupy space.
If several internal bends point toward the center of the enclosure, they can reduce usable installation space.
This can become a problem when the customer later installs real components.
Therefore, an ODM design review should consider both:
Where does the flange need to be?
and:
What space does the flange consume?
A common mistake is to calculate the enclosure's internal space using only its external dimensions.
For example:
An enclosure may have an external depth of 300 mm.
That does not necessarily mean there are 300 mm available for internal components.
Bends, flanges, mounting structures, doors, and other features can reduce the usable area.
For equipment housings, this can matter considerably.
The engineering team should therefore distinguish between:
and
This distinction can prevent component interference later in development.
Two bends positioned very close together may look acceptable in a CAD model.
But manufacturing may require sufficient space between features for practical forming.
The actual feasibility depends on factors such as:
Material
Thickness
Bend geometry
Tooling
Machine capability
Part dimensions
This does not mean closely spaced bends are impossible.
It means they should be reviewed during the design stage.
A good ODM manufacturer should be able to identify these areas before the part reaches production.
For customer-facing products, appearance matters.
The position and direction of bends can affect:
Corner appearance
Panel alignment
Visible edges
Surface transitions
Overall visual consistency
This can be particularly important for:
EV charging enclosures
LED display cabinets
Commercial equipment housings
Industrial products installed in visible locations
The enclosure should not only satisfy functional requirements.
Its structural details should also support the intended product appearance.
Engineers sometimes add features to a panel one by one.
For example:
First, add a mounting flange.
Then add a second flange.
Then add a reinforcement.
Then add a cable opening.
Then add another mounting surface.
Individually, each feature makes sense.
But together, they may create an unnecessarily complicated part.
A better approach is to review the entire panel as one manufacturing structure.
Ask:
Can the same function be achieved with a simpler bending layout?
Sometimes a small structural change can reduce the number of difficult bends without affecting the enclosure's functionality.
This is exactly the type of improvement that can be discussed during ODM development.
A sheet metal enclosure usually does not consist of only one manufacturing process.
The panel may go through:
Laser Cutting
↓
CNC Bending
↓
Welding
↓
Grinding
↓
Powder Coating
↓
Final Assembly
The design of one stage can influence another.
For example, a cutout may be easy to laser cut but difficult to access after bending.
A mounting hole may be correctly positioned in the flat pattern but become difficult to use after the flange is formed.
This is why enclosure development should consider the manufacturing sequence as a whole.
Before a sheet becomes a three-dimensional enclosure panel, it starts as a flat piece.
The flat pattern determines how the final structure will be formed.
A good design needs to account for:
Bend locations
Bend directions
Flange dimensions
Cutouts
Hole positions
Material behavior
The final 3D model may look correct, but the manufacturing team still needs a practical flat pattern.
For this reason, sheet metal design is different from simply designing a solid plastic or machined component.
The manufacturing process is closely connected to the geometry.
Different enclosure components have different requirements.
For example:
May prioritize:
Appearance
Structural stiffness
Clean corners
May prioritize:
Component installation
Hole positions
Internal clearance
May prioritize:
Alignment
Opening movement
Edge structure
May prioritize:
Strength
Installation
Compactness
Using the same bending strategy for every component is not necessarily the best approach.
Each part should be considered according to its function.
Consider an EV charging enclosure with several sheet metal panels.
The enclosure may contain:
Front door
Side panels
Rear panel
Internal mounting structures
Base structure
The internal mounting panel may require several flanges to create a rigid structure.
But those flanges also consume internal space.
If their direction is not considered carefully, they could interfere with equipment installation.
During ODM development, the enclosure structure can therefore be reviewed around:
Component space
Bend direction
Mounting requirements
Assembly sequence
Manufacturing practicality
This can help create a better balance between structural performance and usable space.
LED display cabinets also contain multiple bent sheet metal structures.
For example, a cabinet may require:
Outer frame
Rear structure
Module mounting structure
Doors or access panels
Connection structures
The bending layout can affect:
Module installation
Cabinet assembly
Panel alignment
Internal space
Structural rigidity
For LED display cabinets, the enclosure design should therefore be considered as a complete structural system rather than simply a collection of flat panels.
An industrial equipment enclosure may contain several different internal structures.
One panel may need to support mounting hardware.
Another may form the external wall.
Another may provide structural reinforcement.
Instead of making every component unnecessarily complex, the design team can evaluate whether the required function can be achieved through a simpler bending structure.
This can help improve manufacturing efficiency without sacrificing the purpose of the enclosure.
Before sending the final design into production, ask:
These questions can reveal problems before manufacturing begins.
In an ODM project, the manufacturer can participate earlier than a traditional fabrication supplier.
Instead of waiting for a final drawing, the development process can include:
Customer Product Requirement
↓
Initial Enclosure Design
↓
Bend & Structure Review
↓
Manufacturing Optimization
↓
Prototype
↓
Design Confirmation
↓
Production
This gives the engineering team an opportunity to improve the enclosure before the design becomes difficult or expensive to change.
The objective is not to change the customer's product unnecessarily.
It is to find opportunities where a small structural adjustment can make the enclosure easier to manufacture and assemble.
A good enclosure design should balance several requirements.
It needs to perform its intended purpose.
It needs appropriate rigidity and support.
The panels should be practical to cut, bend, weld, and finish.
The finished components should connect efficiently.
The enclosure should support the required access and service strategy.
The design should remain practical when moving into repeat production.
Bend direction is only one part of this process.
But it is an important part that can easily be overlooked during the early design stage.
The question is not simply:
Can this sheet metal panel be bent?
A better question is:
Can this panel be bent efficiently, assembled correctly, and produced consistently as part of the complete enclosure?
Bend direction, flange orientation, bend sequence, internal clearance, and feature placement can all influence the final result.
For custom metal enclosure projects, considering these details during ODM development can prevent unnecessary manufacturing complexity later.
A strong enclosure design is not just a good-looking CAD model.
It is a design that works as a real manufacturing product.
Bend direction can affect tooling access, bend sequence, assembly clearance, internal space, and the overall manufacturability of the enclosure.
Yes. Flange orientation and bend locations can interfere with adjacent panels, fasteners, brackets, and internal structures.
It can. Internal flanges and bent structures occupy physical space and should be considered when planning component installation.
Yes. Reviewing bend direction and bend sequence during design can help identify manufacturing issues before production begins.
Yes. During ODM development, the enclosure structure can be reviewed together with the bending, assembly, and overall manufacturing process.
A 3D model may show the final shape, but the manufacturing process starts with how every panel will actually be formed.
