A rental LED display cabinet has a different manufacturing requirement from a conventional fixed installation cabinet.
The cabinet may be assembled, dismantled, transported, stacked, and installed repeatedly.
That means the metal structure has to perform consistently every time it is connected to another cabinet.
For the LED screen manufacturer, problems such as excessive weight, uneven cabinet surfaces, inconsistent mounting positions, or difficult locking connections can become installation problems in the field.
A recent project for a US LED display manufacturer supplying rental screens for events and touring stages illustrates this type of requirement.
The customer needed a lightweight cabinet with:
Approximately 8 kg cabinet weight
Flatness within 0.2 mm
Repeatable module mounting
Fast-lock connections between cabinets
Consistent cabinet interchangeability
Reliable performance during repeated assembly and dismantling
The challenge was to reduce weight without compromising the structural accuracy required for repeated installation.
The customer was producing rental LED screens for events and touring applications.
Unlike a permanently installed display, rental screens can be assembled and dismantled many times.
The cabinet therefore becomes part of a repeated mechanical connection system.
The customer specifically required the cabinet to remain around 8 kg, while maintaining flatness within 0.2 mm at the module surface.
These requirements created a manufacturing trade-off.
Reducing material can reduce weight.
But removing too much material can affect rigidity.
Increasing structural reinforcement can improve stiffness.
But it can also increase weight.
The cabinet therefore had to achieve the required balance between:
Weight + Stiffness + Flatness + Repeatability
For an LED display cabinet, the mounting surface is important because multiple cabinets eventually form one larger display.
If adjacent cabinets do not maintain a consistent surface position, the assembled screen can develop visible steps or alignment differences.
In this project, the customer required:
Flatness within 0.2 mm.
This was therefore treated as a manufacturing requirement rather than simply an appearance requirement.
The mounting faces needed to remain sufficiently accurate for the customer's LED modules and cabinet-to-cabinet assembly process.
The target cabinet weight was approximately 8 kg.
The solution used AL9005 aluminum profiles with lightweight cutouts in non-structural areas.
The purpose of these cutouts was not simply to remove material.
They were positioned in areas where material could be reduced while retaining the structural areas required for mounting and rigidity.
This allowed the enclosure structure to meet the customer's weight requirement while maintaining the necessary mechanical interfaces.
For a rental LED cabinet, this can have a direct effect on handling.
Every cabinet may be manually transported and installed multiple times during its operating life.
Reducing unnecessary enclosure weight can therefore make the cabinet easier to handle during repeated setup and dismantling.
One of the important manufacturing details in this project was the treatment of the mounting faces.

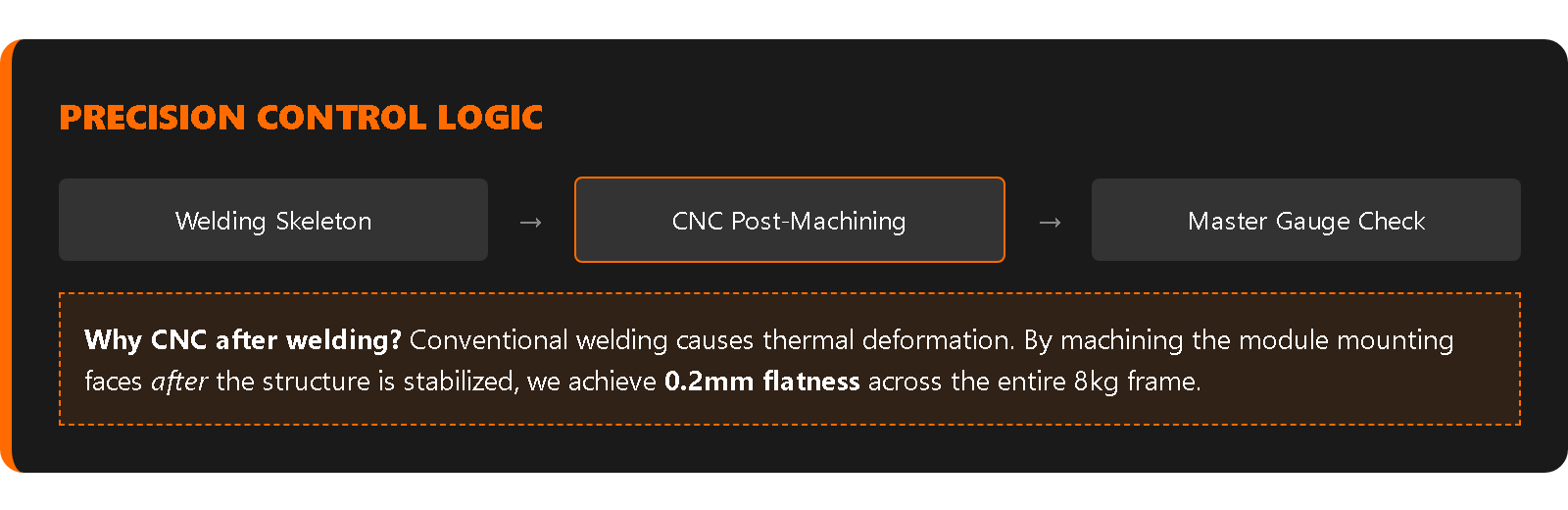

The cabinet structure was welded first.
The mounting positions were then CNC machined after welding.
This approach allowed the mounting faces to be brought to the required dimensional condition after the welded structure had been completed.
This was important because welding and structural assembly can affect the final position of mating surfaces.
For a cabinet that needs to maintain a 0.2 mm flatness requirement, simply welding components together and relying on the raw welded surface may not provide sufficient control.
Machining the critical mounting faces after welding provided a controlled finishing step for these important interfaces.
The customer also required fast-lock connections between cabinets.
For rental LED displays, the cabinet must connect quickly to neighboring cabinets during installation.
But speed alone is not enough.
The connection must also be repeatable.
If mounting positions vary between cabinets, installers may need to adjust, shim, or force the cabinets into alignment.
This project therefore focused on maintaining consistent mounting locations throughout production.
The goal was to make the cabinets interchangeable rather than requiring each cabinet to be individually matched during installation.
To maintain consistency, the production team used a master cabinet as a reference.
Each cabinet was checked against the master cabinet before packing.
This provided a practical production control for checking whether the manufactured cabinets maintained the required interfaces.
For a rental screen manufacturer, this type of repeatability is particularly important.
The customer may combine cabinets produced at different times into one large screen.
The cabinets therefore need to remain compatible with the same mounting and connection system.
Item | Specification |
|---|---|
Industry | LED Display |
Application | Rental LED Screen |
Customer | US LED Display Manufacturer |
Material | AL9005 Aluminum Profile |
Target Weight | Approximately 8 kg per cabinet |
Flatness | Within 0.2 mm |
Key Structure | Lightweight aluminum profile |
Weight Reduction | Cutouts in non-structural areas |
Critical Process | CNC machining after welding |
Connection | Fast-lock cabinet connections |
Quality Control | Each cabinet checked against master cabinet |
The cabinets were delivered to the customer's requirements.
Because the cabinets could be interchanged without additional shimming, the customer's field assembly process became more consistent.
The customer subsequently standardized the enclosure structure for its following model.
This result is important because the project was not simply about producing a batch of metal cabinets.
The enclosure became part of the customer's product platform.
Once the mechanical structure was standardized, the same manufacturing approach could support subsequent product development.
Rental display products place repeated mechanical demands on the cabinet.
A cabinet may experience:
Assembly
↓
Locking
↓
Transport
↓
Disassembly
↓
Reassembly
↓
Connection to another cabinet
The enclosure therefore needs to maintain its critical interfaces through repeated use.
For the manufacturer, this means the important quality points may include:
Cabinet weight
Flatness
Mounting position
Locking position
Structural rigidity
Cabinet-to-cabinet interchangeability
Surface finish
These requirements are directly related to the manufacturer's final product.
A common mistake in lightweight enclosure development is to treat weight reduction as simply reducing material thickness.
For a rental LED cabinet, this can create a new problem if structural rigidity or mounting accuracy is compromised.
In this project, weight reduction was approached through the structure itself.
AL9005 aluminum profiles were used, and material was removed from non-structural areas while preserving the areas required for mounting and structural support.
This allowed the customer to target a lightweight cabinet without treating every part of the enclosure equally.
The customer was not simply purchasing aluminum profiles.
They needed a cabinet structure that could become part of their rental LED screen system.
That meant the manufacturing requirements were connected to how the customer's product would actually be used:
The cabinet needed to be light enough for repeated handling.
The front surface needed sufficient flatness.
Mounting points needed to remain consistent.
Fast-lock connections needed to work between cabinets.
Cabinets needed to remain interchangeable.
This is where an ODM-oriented enclosure manufacturer can contribute more than simply fabricating individual parts.
The enclosure needs to be manufactured according to the mechanical requirements of the customer's product.
Our scope is the metal enclosure and structural components for LED display products.
We manufacture custom:
Rental LED display cabinets
Outdoor LED display cabinets
Front-maintenance LED cabinets
Curved LED display cabinets
LED display cabinet components
Custom sheet-metal structures
The customer supplies the LED display system and internal components.
Our manufacturing scope is focused on the cabinet, housing, and structural sheet-metal parts.
This allows the enclosure to be developed around the customer's required dimensions, mounting interfaces, weight target, and installation method.
For equipment manufacturers, the most valuable stage of a custom enclosure project is often not the first prototype.
It is the point at which the enclosure becomes a repeatable product.
In this project, the manufacturing process established:
Lightweight structure
→ Controlled mounting faces
→ 0.2 mm flatness requirement
→ Repeatable locking positions
→ Master-cabinet verification
→ Interchangeable cabinets
The result was a cabinet structure that the customer could use as a standardized design for subsequent models.
If you are developing a rental LED screen and need a custom cabinet structure, send us your 3D CAD file, 2D drawing, target cabinet weight, mounting requirements, or existing cabinet sample.
We can manufacture the metal cabinet and structural components around your product requirements.
